Replacement belts for Fluent roller chain conveyors and other OEM equipment. Apron pan, hinged steel, rubber combo, and Z-pan configurations in pitch options from 4 to 12 inches.

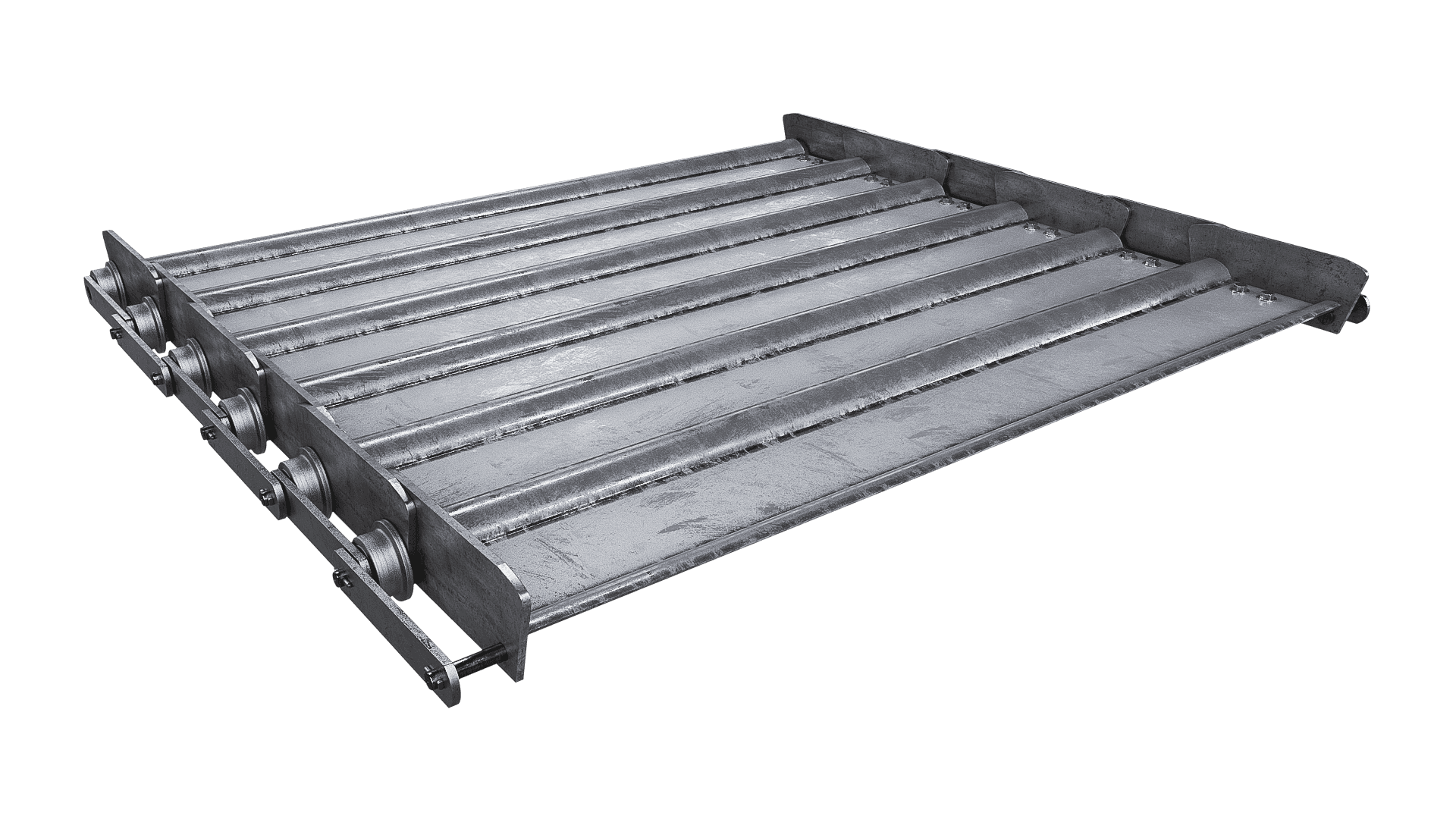

Overlapping metal pans for high-impact infeed and fine material retention.
Articulating hinged pans for flat or incline conveying of mixed heavy loads.
Rubber belting with steel reinforcement for fines, powders, and granular material.
Interlocking Z-shaped pans form troughs to contain material on inclines.
Explore durable roller chain belts engineered for strength, smooth conveying, and extended service life.

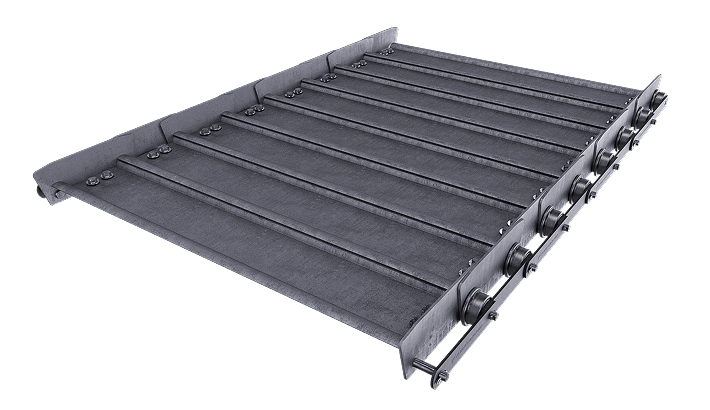

Apron pan belts handle large, heavy, or wet materials common to recycling, manufacturing, mining, and automotive applications. The overlapping pan geometry creates a tight conveying surface that resists spillage between pans. It is moderately suited for fines and withstands high-impact infeed.
Key features
Our apron pan belts include the following features:
Heavy-duty formed pans
Solid machined bushings
Optional c-channel reinforcement
Double-row sidebars
Formed plate support angles
Cotter pins
Hardened sintered rollers
Extended inner side bar staggered
Headed stub pins
Heavy-duty impact pads
Apron pan belts come in 6, 9, and 12-inch pitch options from 12–108 inches wide. Additional features include 1/4–1/2 inch thick precision-formed beaded apron-style pans, precision die-punched wings, single flanged and sintered steel rollers, solid locking pins, and add-on options such as cleats, upgraded chain, c-channel backing, larger rollers, and more.
For reference measurements, see apron pan belt dimensions.

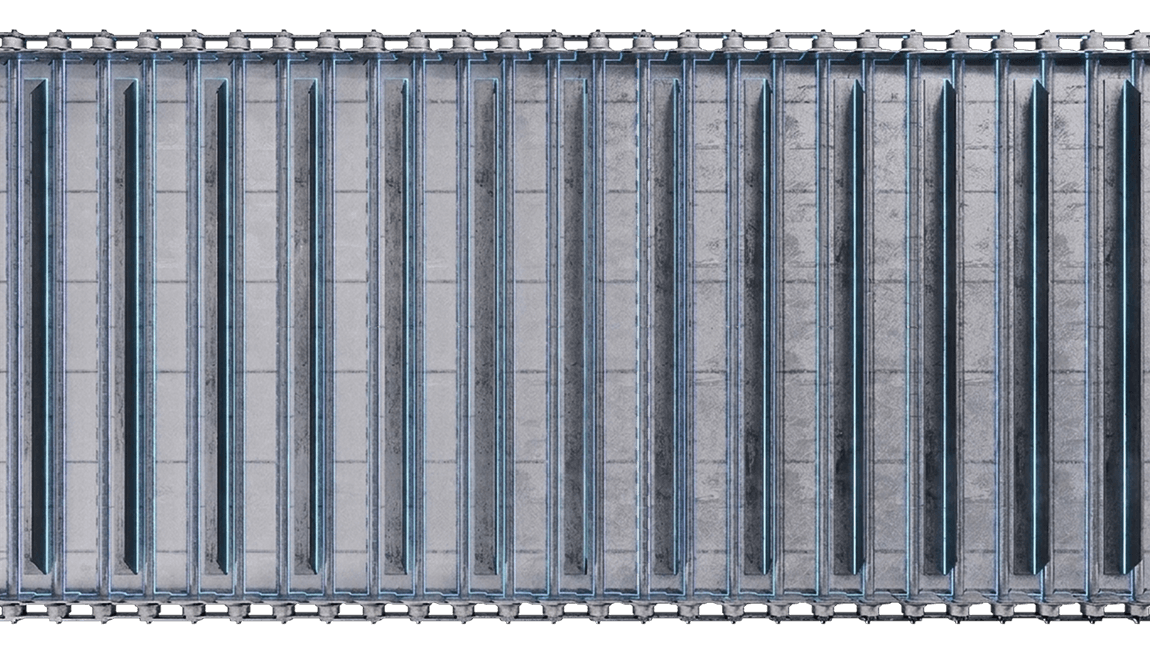

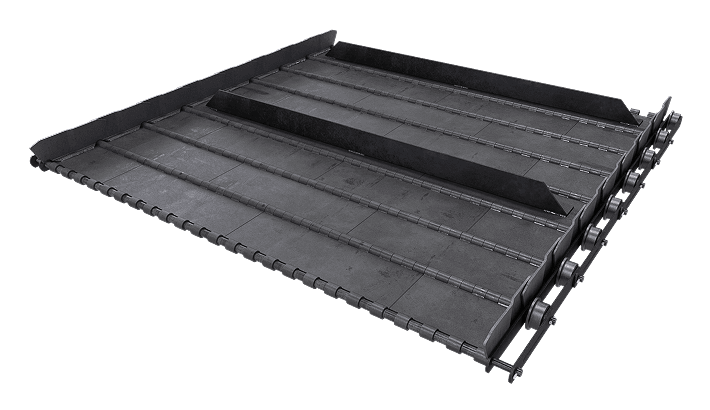

Hinged steel belts are capable of flat and inclined conveying. They are common in waste management, recycling, manufacturing, foundries, and related industries. The interlocking hinged pan design articulates through incline and decline configurations while maintaining a continuous, closed conveying surface. It contains large, bulky material and smaller, loose items.
Key features
Our hinged steel belts include the following features:
Solid machined bushings
Optional c-channel reinforcements
Double-row side bars
Custom angle cleats
Heavy-duty formed pans
Heavy-duty impact pads
Cotter pins
Hardened sintered steel rollers
Through pins
Interlocking side wings
Hinge sleeves
Hinged steel belts come in 4, 6, and 9-inch pitch options up to 96 inches wide. Additional features include 1/4–3/8 inch thick precision-formed pans, precision die-punched wings, single flanged and sintered steel rollers, solid locking pins, and add-on options such as cleats, upgraded chain, c-channel backing, larger rollers, and more.
For reference measurements, see hinged steel belt dimensions.

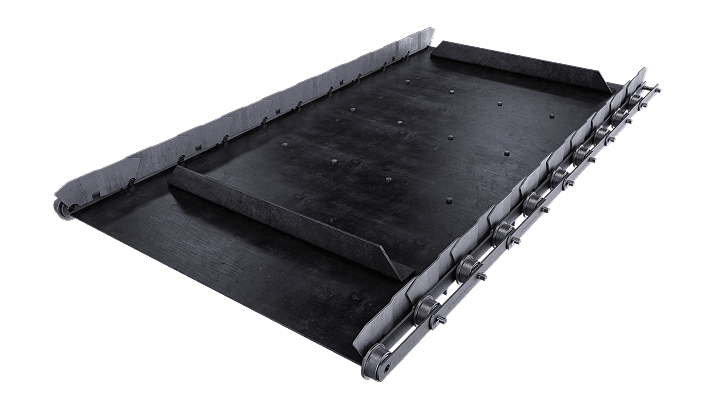

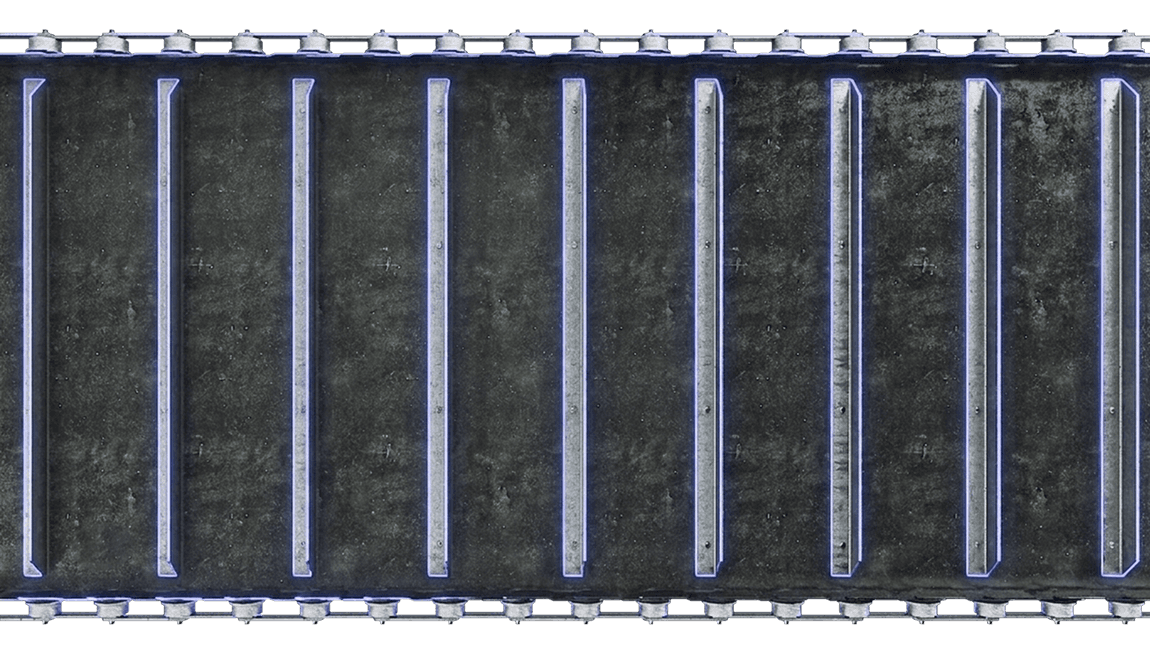

Rubber combination belts pair a continuous rubber carcass with a steel-reinforced frame. They combine the sprocket-driven power of roller chain conveyors with the sealing, gentle-handling characteristics of rubber belting. The gapless rubber surface contains powdery, fine, or highly saturated material more effectively than steel pan alternatives. Rubber combo belts are standard in recycling and waste management for sorting and transporting shredded commodities, including cardboard, plastic, and paper.
Rubber combo belts are what we attach to tumble-back conveyors. They meter bulk material at controlled rates into hammer mills, shredders, trommels, and other downstream equipment.
Key features
Rubber combination belts include the following features:
C-channel reinforcements
Interlocking side wings
Cotter pins
Double-row sidebars
Custom angle cleats
Solid machined bushings
Heavy-duty rubber
Heavy-duty impact pads
Hardened sintered steel rollers
Headed stub pins
Rubber combo belts come in 6- and 9-inch pitch options up to 84 inches wide (custom widths available). Additional features include belting made with 2-ply 220 or 3-ply 330 rubber, precision die-punched wings, single-flanged and sintered-steel rollers, solid locking pins, C-channel backing, and additional options such as cleats, upgraded chain, larger rollers, and more.
For reference measurements, see rubber combo belt dimensions.

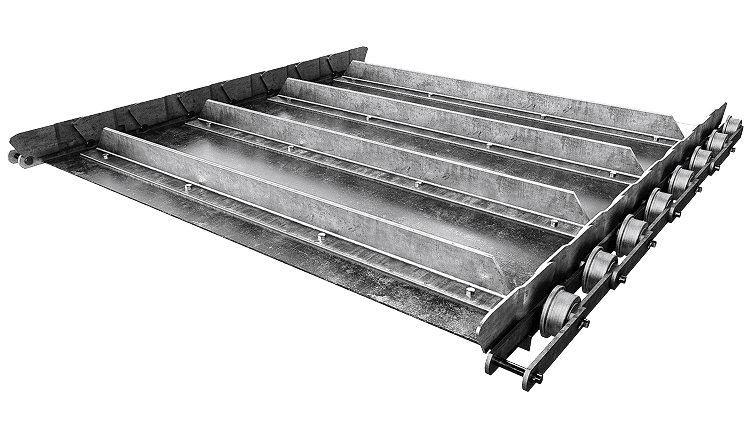

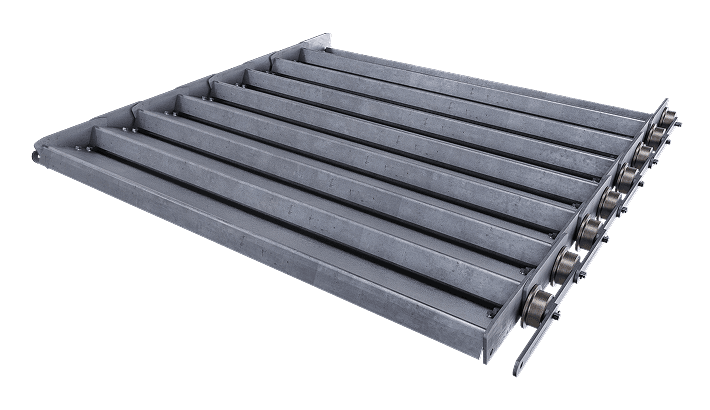

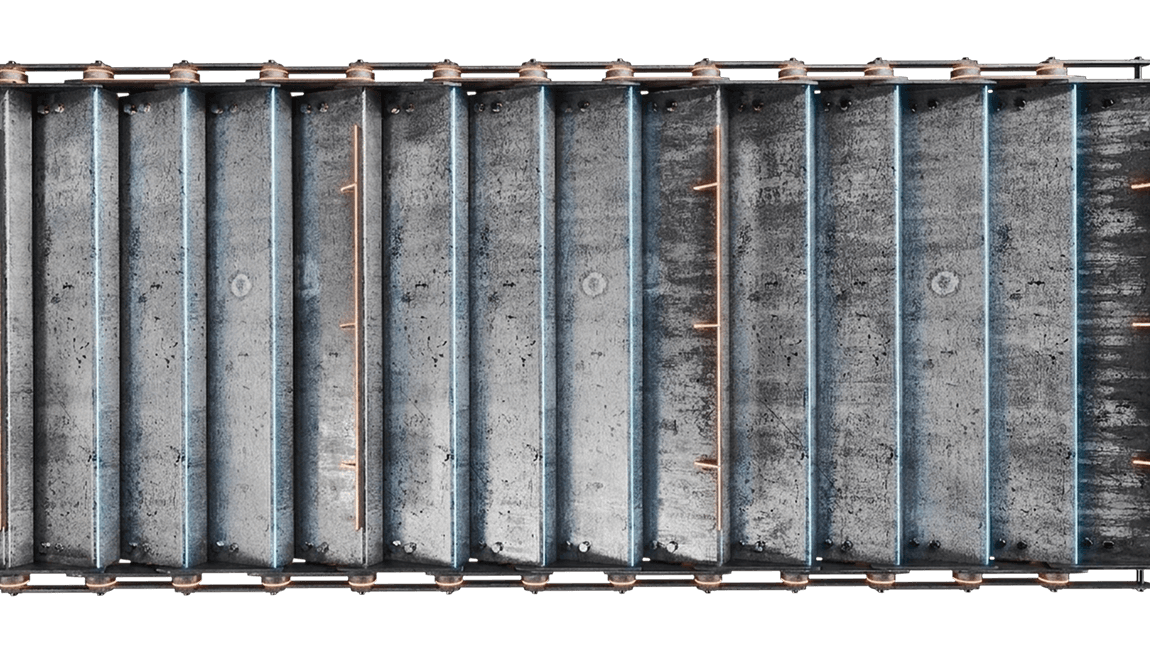

Z-pan belts are heavy-duty, high-impact, and temperature-resistant. The interlocking Z-shaped pan cross-section forms material-carrying troughs that capture loose material and prevent rollback on inclines. Used across recycling, waste management, biofuel, construction and demolition, foundry, and material recovery environments. Z-pan conveyors handle abrasive and heavy materials, including glass, e-waste, cement, and metal scrap.
Key features
Z-pan belts include the following features:
Heavy-duty formed pans
Solid machined bushings
Double-row side bars
Formed plate angles
Cotter pins
Hardened sintered steel rollers
Extended inner side bar staggered wings
Headed stub pins
Heavy-duty formed impact wear pads
Z-pan belts come in 6, 9, and 12-inch pitch options up to 108 inches wide. Additional features include 1/4–1/2 inch thick precision-formed z-style pans, precision die-punched wings, single flanged and sintered steel rollers, solid locking pins, and add-on options such as cleats, upgraded chain, larger rollers, and more.
For reference measurements, see Z-pan belt dimensions.
Roller chain belts are optimized for a different combination of materials and operating conditions. Use the table below as a starting point.
Not sure which belt fits your conveyor or material? Contact us with your conveyor model number, belt pitch, and material details. We'll confirm the right configuration.
You can also consult the roller chain belt conveyor owner's manual for model-specific belt compatibility references.
Replace steel pan belts when you observe the following:
Cracked, bent, or missing pans that expose the chain assembly or allow material to fall through
Pan wear that reduces material containment
Deformed or broken wings
Chain elongation that causes skip or misalignment at the drive sprockets
Worn or seized rollers that create drag and uneven belt loading
Replace rubber combo belts when you encounter these issues:
The rubber carcass shows cracking, tearing, or delamination from the steel reinforcement channels
Surface wear that exposes the carcass plies
Frayed or torn edges
Belt slippage under load (particularly at the cleats)
You can often swap individual components before replacing the belt. Persistent mistracking that doesn't respond to tension or alignment adjustment typically indicates chain stretch beyond serviceability. For more on failure patterns, see types of conveyor belt damage.
See what causes wear and tear on a conveyor belt for a broader overview of wear mechanisms. For step-by-step procedures, see the conveyor belt replacement guide.

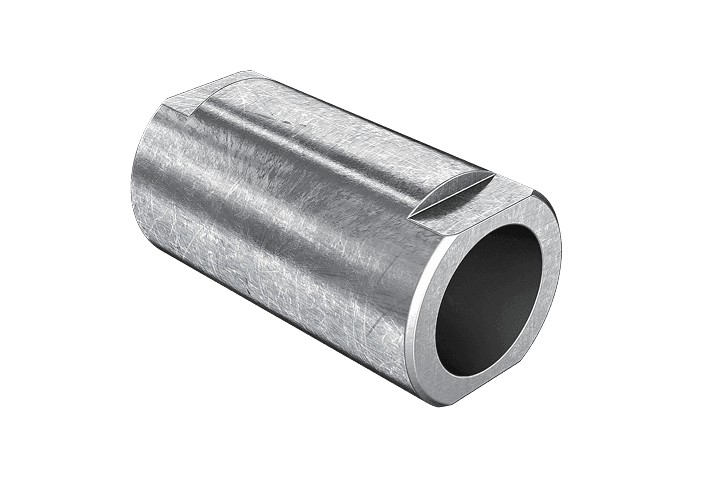

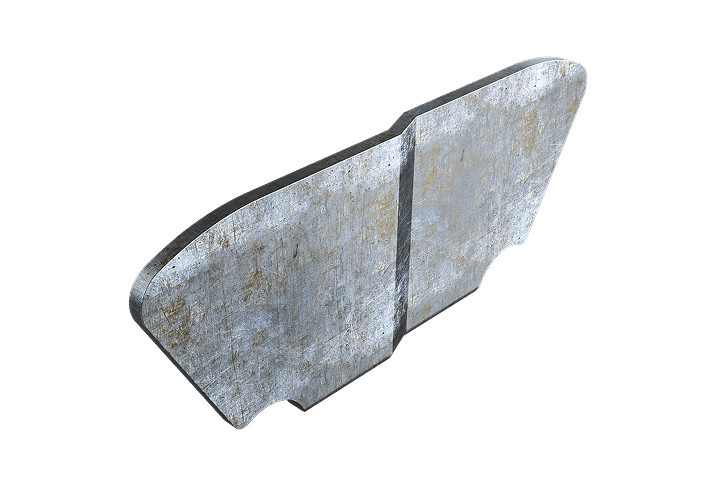

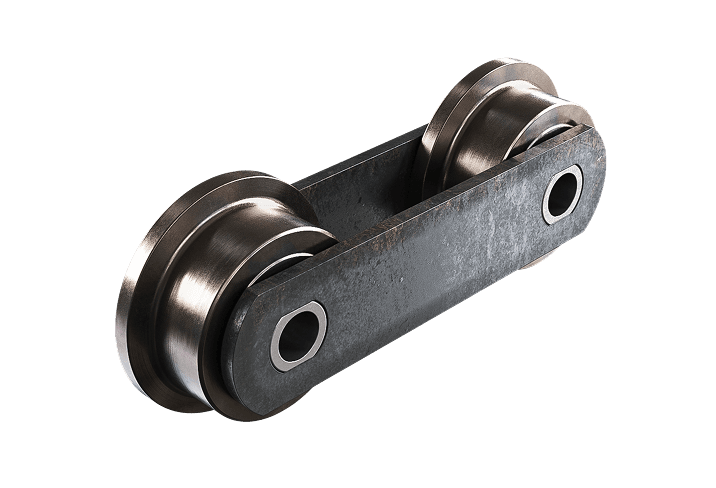

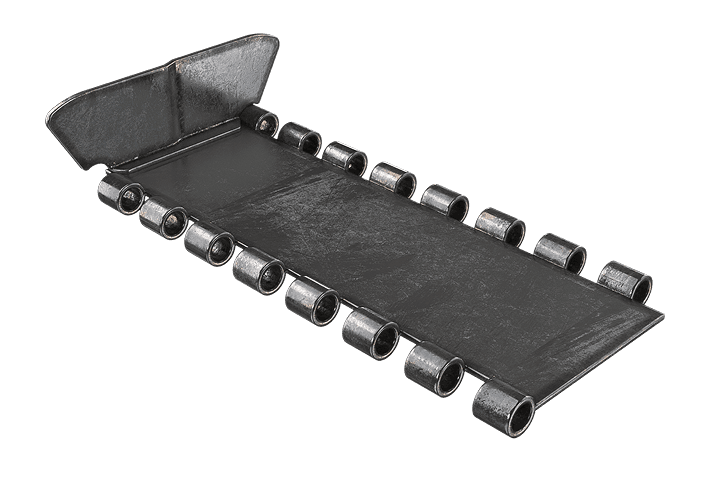

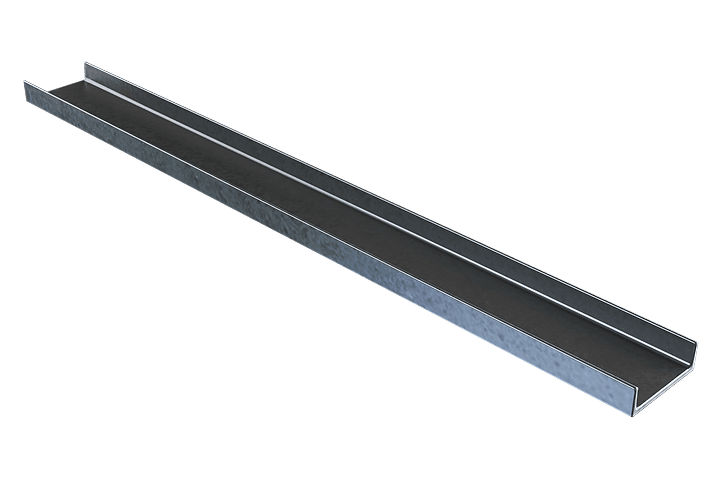

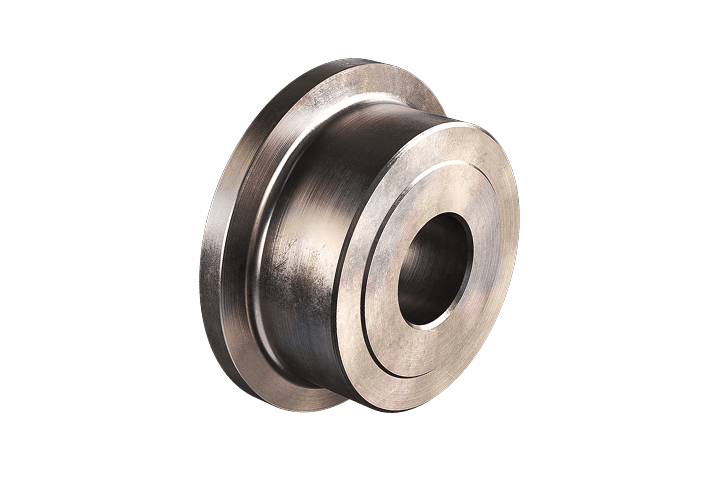

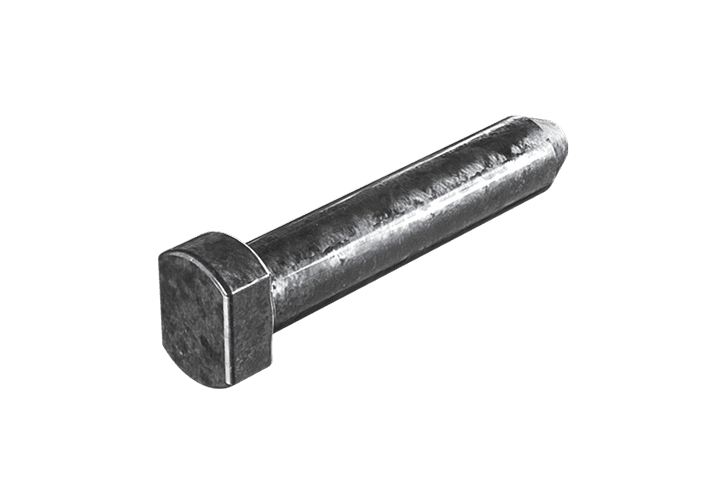

Roller chain belts are modular assemblies. Individual components wear at different rates and can be replaced independently, often extending the service life of the full belt assembly before a complete replacement is warranted. We supply roller chain belt replacement parts for all belt types, including:

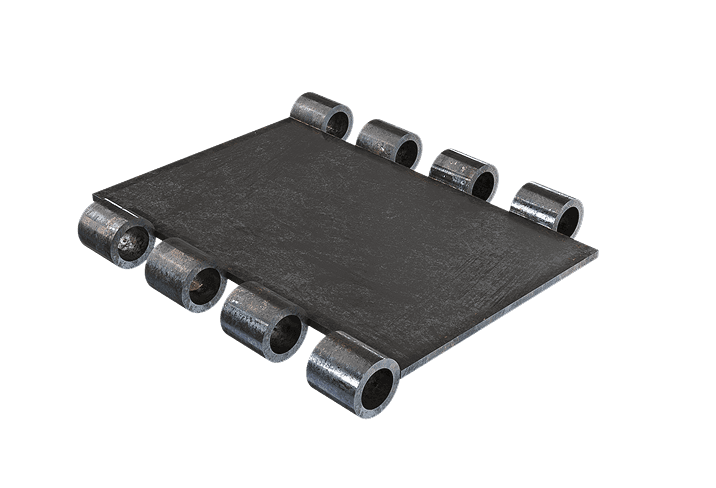

Apron pans (A1 and AD variants), hinged steel pans, and Z-pans
We manufacture custom roller chain conveyors for the most demanding material handling environments on the planet, and we run roller chain belts in our systems every day. When you source through us, you're working with engineers who have over 100 years of combined experience troubleshooting roller chain conveyors and choosing belts for real-world performance.
Replacement roller chain belts for all Fluent conveyor models and other OEM equipment
Belt selection and sizing guidance grounded in real-world engineering experience
Belts ship in 1–12 weeks; custom configurations made to order
