Fluent supplies conveyor skirting systems, skirtboard rubber, skirt seals, clamps, and wear liners for load zones on belt conveyors. Systems fit belt widths 18"–96" and seal on as little as 1.25" of free belt edge per side, matched to your trough angle, material, belt speed, and available clearance.
Ranges below encompass all products.
18"–96", enclosed systems in 6" increments
1.25', 4', 5', and 6' wall and clamp modules
25' and 50' rolls; cut-to-width strip in 50' lengths; continuous rubber to 300'
3"–12"; 48" roll stock for chute lining and cut parts
1/4"–1"
40A–90A, compound dependent
0°, 20°, 35°, and 45°
From 1.25" per side
To 1,300 fpm, product dependent
-40°F to 300°F, compound dependent
9"–15"
48" and 72"
Weld-on and bolt-on
Mechanical and vulcanized
Product dependent
enhance conveying efficiency.
Find the right seal and liner for your application.
Match your belt width, trough angle, and free belt edge to an available system, then confirm the specification against your load-zone measurements. Fluent supports every skirting system we supply with replacement seals, liners, clamp components, and wear hardware.

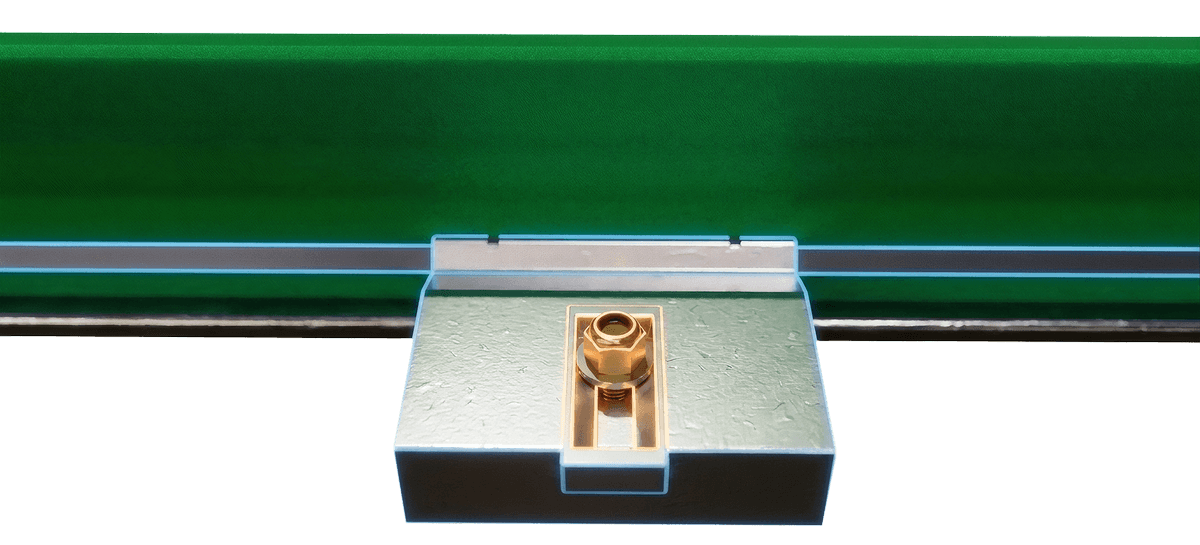

High-quality parts for dependable conveyor skirting assemblies.
The wear liner takes the weight and impact of the material.
The seal contains the air and fines that travel with it.
The clamp holds the seal at the right angle and pressure
On a rebuilt or new load zone, an enclosure carries all three plus its own support structure.
The elastomer strip that rides against the belt and closes the gap at the belt edge.
One-piece dual-contact seals
Reversible dual-contact seals
Urethane dual-contact seals
Self-adjusting seals

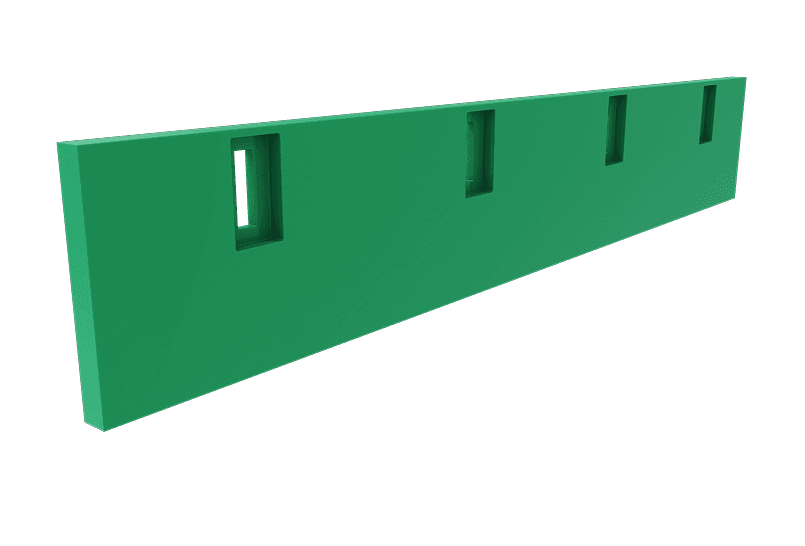

Chamfered polyurethane skirting
Dual-contact polyurethane skirting

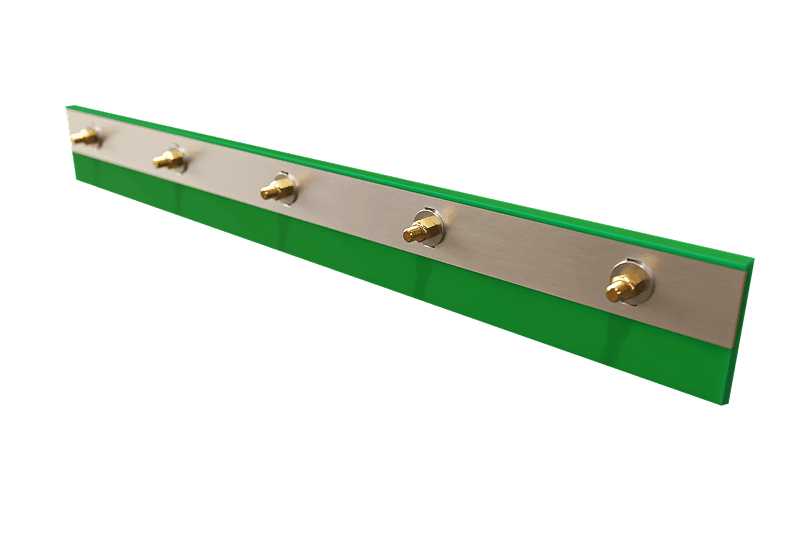

The rail, plates, and pins that set contact angle and pressure and allow adjustment from alongside the conveyor rather than inside the chute.
Standard clamp rails
Heavy-duty clamp rails
Angled clamp systems
Limited-space profiles
Bolt-on clamp kits
Steel or steel-reinforced polyurethane mounted at the chute wall to absorb the load and shield the seal. On this page, skirtboard refers to that wall and its liners. The rubber strip clamped to it and riding on the belt is covered separately under skirtboard rubber.
Internal skirtboard liners
External wear liners
Steel-reinforced polyurethane liners
Abrasion-resistant steel plate liners
Wall, liner, seal, clamp, and support supplied as one assembly for a new load zone or a full rebuild.
Enclosed load-zone systems: skirt walls with externally adjustable AR400 or polyurethane liners, cover kits, dust curtains, front stiffeners, and universal support legs that mount to your existing stringer. Belt widths 18"–96" in 6" increments, wall units 1.25', 4', and 5' long in 9"–15" heights, sealing vertical or tangential.
Weld-on wall kits: a one-piece repair welded to skirt walls that are still sound, supplied with clamps and an AR400 or polyurethane liner. 4' and 5' units, straight or tangential.
A seal cannot hold contact against a belt that drops away from it, so belt support through the load zone gets confirmed before any seal is specified. Where the belt runs unsupported under the loading point, we recommend installing an impact bed first.
Select the best skirting solution for your operating conditions.
Use the table as a general reference. Final selection comes from measured load-zone data.
Belt width, load-zone length, trough angle, free belt edge on each side, and vertical clearance above the skirtboard. Record existing skirtboard height, thickness, and material. Your conveyor serial number shortcuts most of this on a Fluent-built machine.
Belt speed, direction of travel, and whether the belt reverses or rolls back. Belt construction, cover thickness, and cover condition. Note the splice type, since mechanical fasteners pass under the seal on every revolution and rule out some designs.
Type, maximum lump size, moisture content, abrasiveness, operating temperature, and any oils or chemicals present. Throughput and loading severity.
Skirtboard condition and straightness, clamp type and rail length, whether a wear liner is fitted, and whether welding is permitted at the installation. This step determines whether the quote covers a seal strip, a clamp rail, a wall kit, or a full enclosure.
Dust, spillage, belt grooving, liner wear-through, or constant readjustment. Each points at a different component. Our team works through this with you based on common load-zone symptoms.
The list below is what produces an accurate recommendation. Send what you have, and we will work with it. The six dimensions under load zone are the ones that decide whether a system physically fits.
Photographs of the load zone from both sides carry more information than a written description, so send those alongside any drawings you have. On a Fluent conveyor, your serial number gives us most of the dimensional data without a site visit.
Fluent Conveyors designs and builds custom conveyors for recycling, waste, and heavy industry. We specify load-zone sealing for replacement and retrofit the same way we specify it on our own machines. We use whole-system engineering expertise to help you get the right skirting, specified to last.
System matched to conveyor belt width, trough angle, free belt edge, material, and speed
Seals, clamps, liners, and complete enclosed systems from one source
Retrofit options for sound skirtboards, including bolt-on where welding is restricted
Replacement seals, liners, and wear hardware available by item code
Sourced alongside belts, idlers, pulleys, and impact beds
