Fluent Conveyors supplies take-up bearing units for general replacement and retrofit applications. Shop ball, tapered, and spherical roller configurations.
Specifications vary by series and shaft size. Contact our team for detailed dimensions and load ratings.
1/2″ to 5″ (ball bearings), 1-7/8″ to 5″ (spherical roller bearings), 1-3/8″ to 4″ (tapered roller bearings)
Ball (Type G, GXR, GM), spherical roller (S-2000, Safety Mount), tapered roller (Type E, Type K), and more
Cast iron (standard), stainless steel (corrosive environments), pressed steel (light duty)
Set screw, eccentric collar, adapter sleeve, concentric clamp
Expansion, fixed
Contact seals, triple-lip seals, labyrinth seals, end covers
Top-angle (TP, TPHU), center-pull (CP), wide-slot (WS), telescoping (TS)
-20°F to 250°F (-29°C to 121°C)
Grease fittings standard (1/8-27 NPT)
Up to ±2° (spherical roller bearings)
for your conveyors.

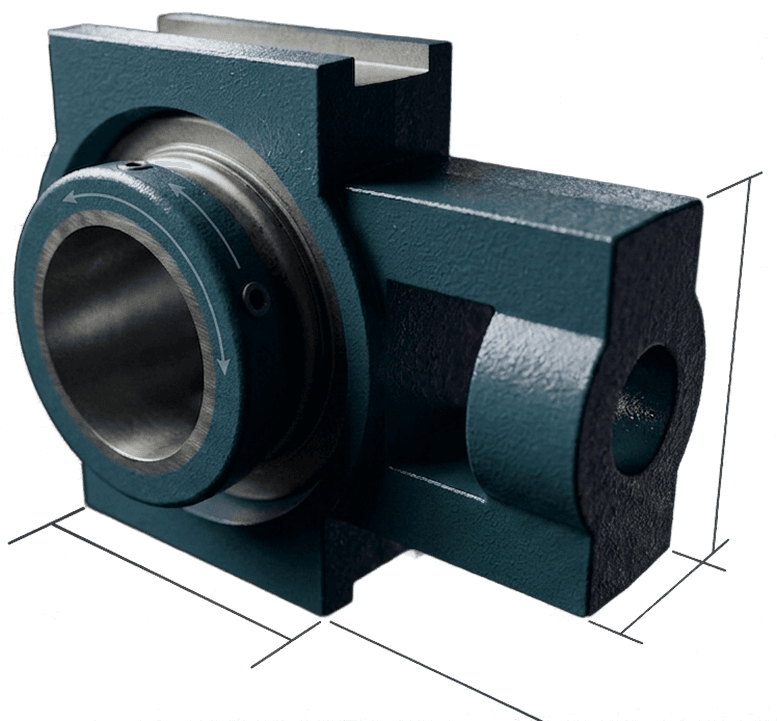

Shaft diameter, load requirements, operating speed, frame type, and environmental conditions determine which take-up bearing will work best. To select an appropriate take-up unit, follow these steps:

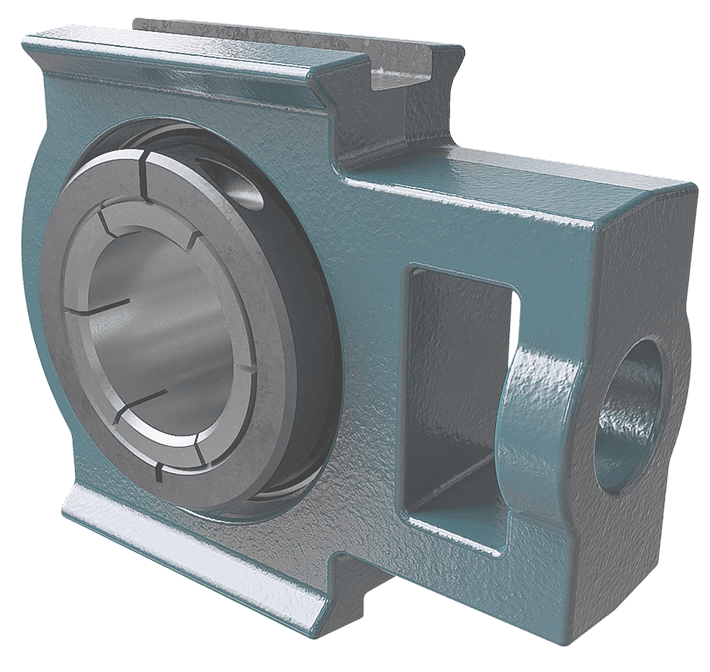

Ball take-up bearings utilize deep groove ball bearing inserts mounted in slotted housings. The rolling elements are precision steel balls arranged in single-row configurations, which helps with radial loads and higher rotational speeds. The contact angle and raceway geometry provide efficient load distribution while minimizing friction.

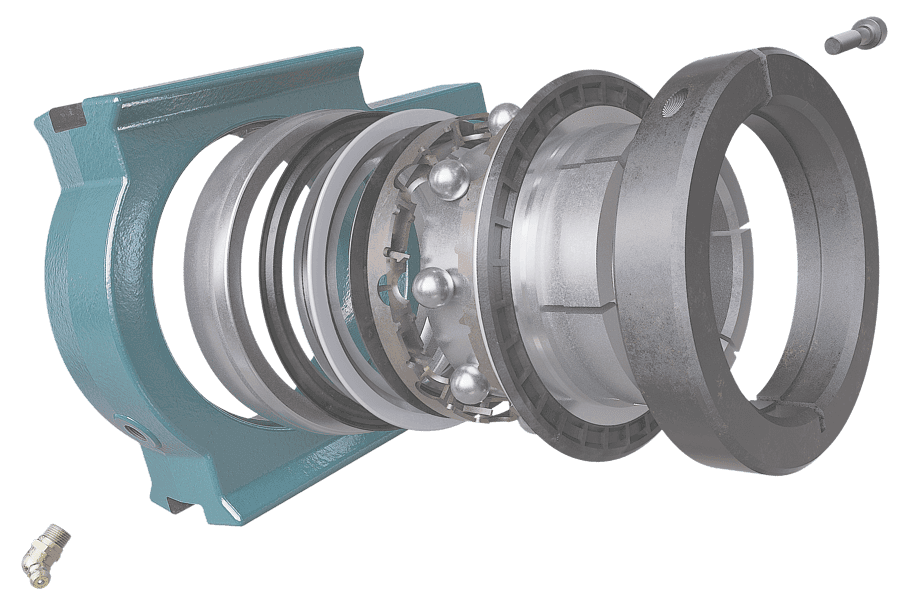

Spherical roller take-up bearings feature double-row barrel or hourglass-shaped rollers running on a common spherical outer ring raceway. This geometry allows the bearing to self-align, accommodating angular misalignment up to ±2° without compromising load distribution. The large roller contact area and optimized internal geometry handle extreme radial loads and shock loading that would overwhelm ball bearing designs.

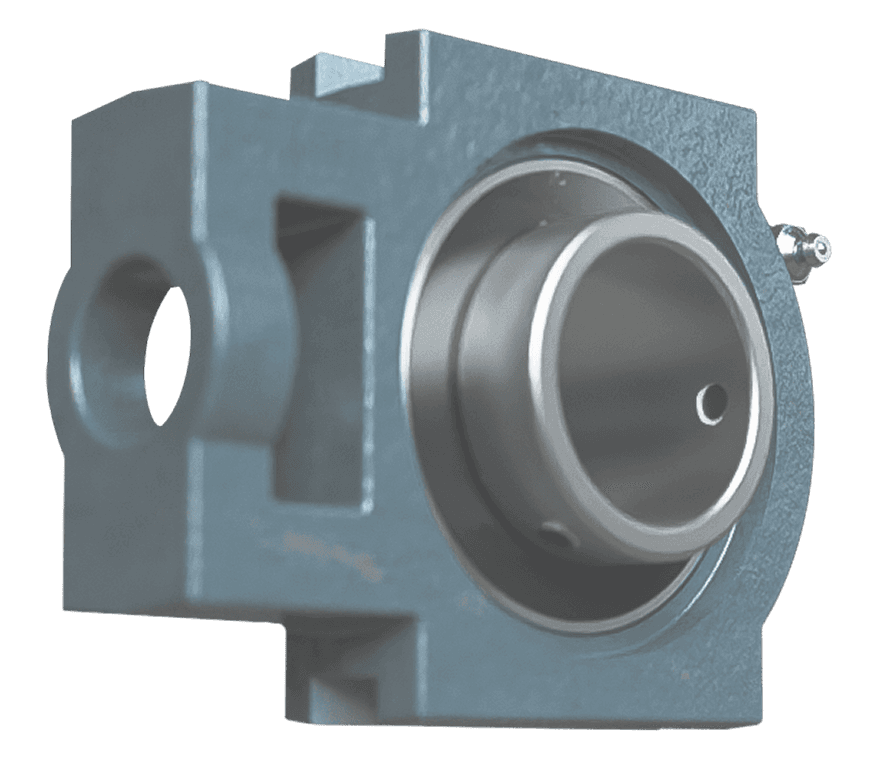

Tapered roller take-up bearings use tapered roller elements arranged between inner and outer ring raceways. The cone angle creates a contact line that intersects at a common apex on the bearing axis, enabling these units to handle combined radial and thrust loads simultaneously. The geometry provides precise shaft positioning and can manage axial forces generated by belt tracking or chain side loads.

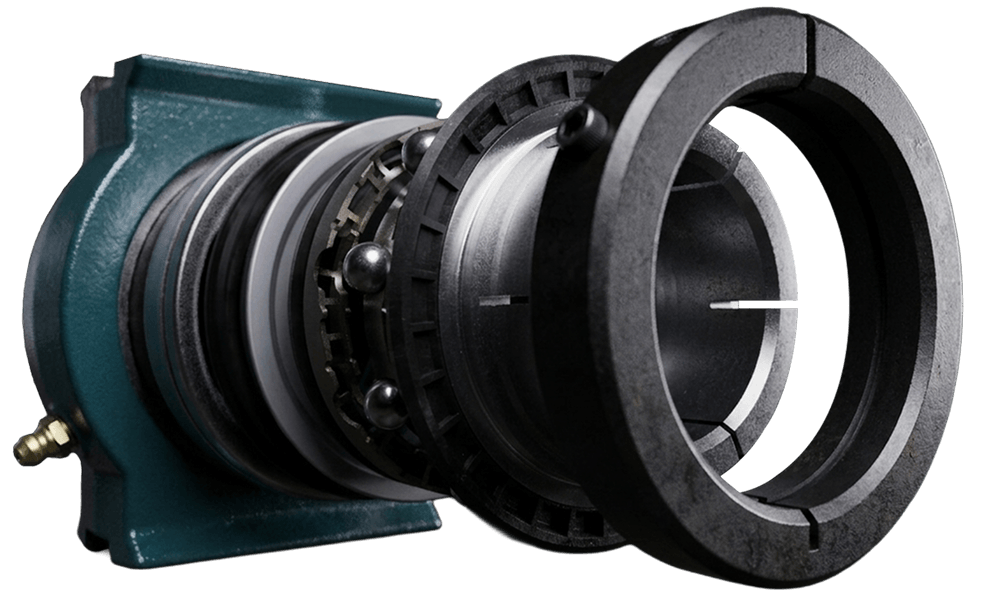

Take-up bearings help maintain belt tension throughout conveyor operation. As belts stretch during break-in or wear over time, take-up assemblies allow adjustment to restore correct tension without disassembling the conveyor.
Proper tension prevents belt slippage at drive pulleys, reduces excessive sag between idlers, and minimizes material spillage. Take-up bearings also accommodate minor belt tracking corrections by allowing small adjustments to shaft position and angle.
Unlike standard pillow block bearings, take-up units mount in slotted frames that permit linear movement. This adjustability allows maintenance personnel to compensate for thermal expansion, belt elongation, and normal wear without removing the bearing from service.

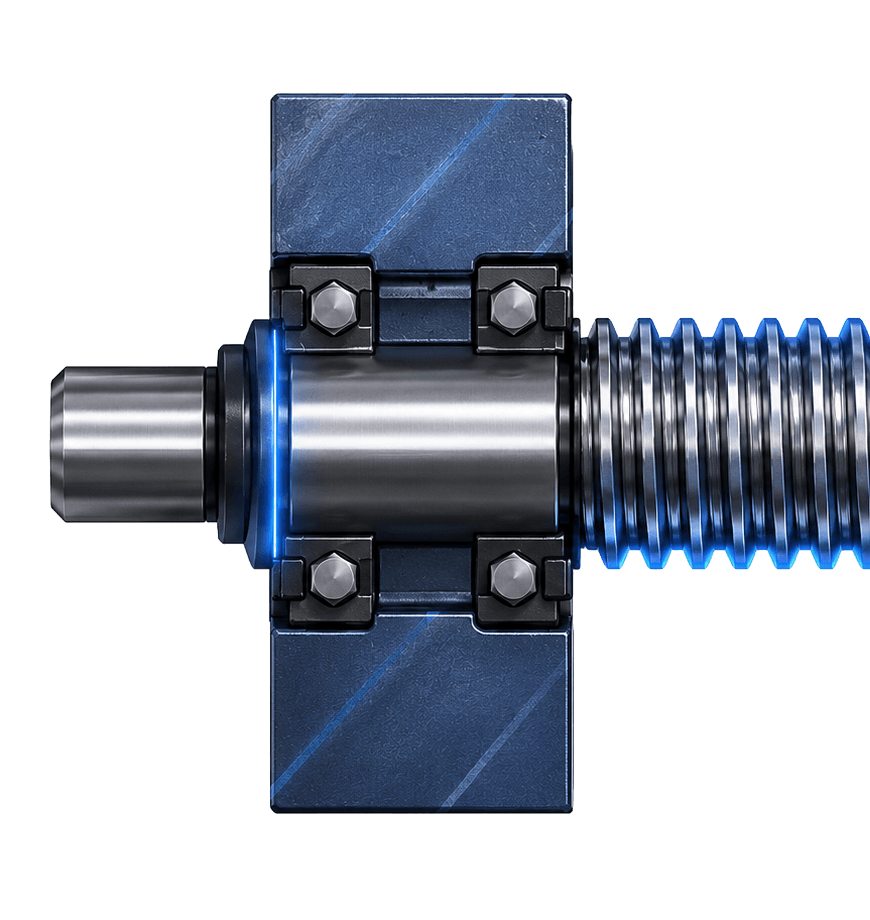

Non-expansion units maintain precise shaft location at one end. The outer housing is fully constrained in the frame slot. All thermal growth occurs away from this fixed point.

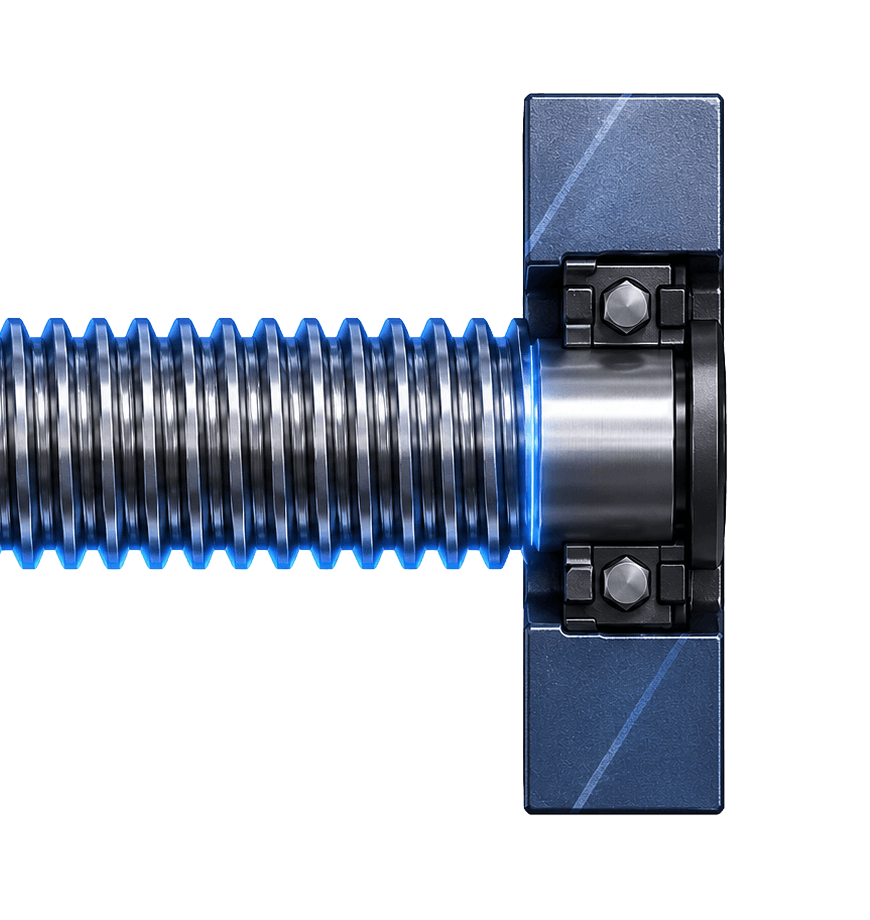

These units allow the shaft to slide axially within the bearing inner ring while the outer housing remains stationary.
Place the fixed bearing at the drive end and the expansion bearing at the tail end. For shafts under 4 feet, two fixed bearings are typically acceptable.

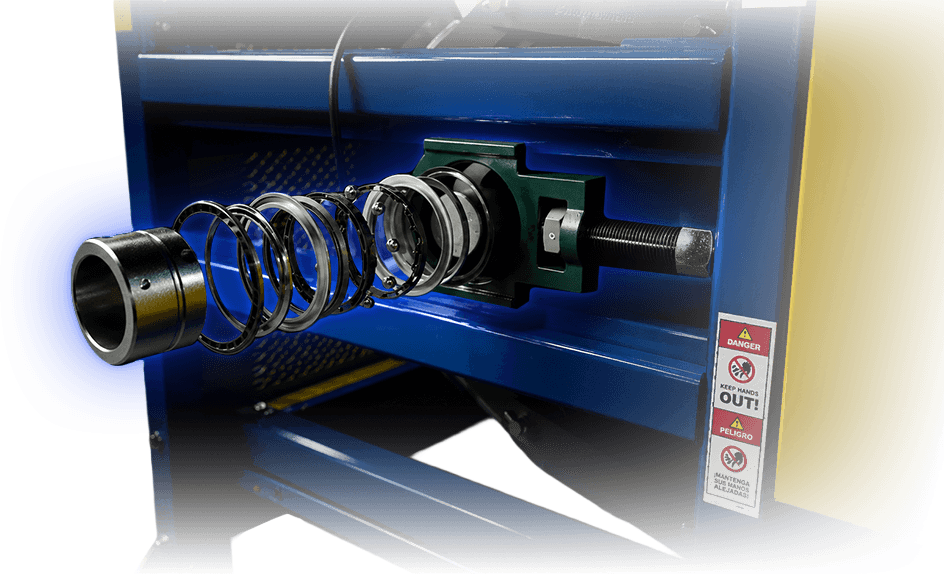

Take-up bearings must match the frame style and dimensions. Fluent supplies take-up units for several frame configurations:
Fluent Conveyors designs and manufactures custom conveyors for demanding applications in aggregate, recycling, manufacturing, and other heavy industrial environments. When you source from Fluent, you're getting technical guidance from a team that understands frame compatibility, expansion placement, and tensioning requirements from hands-on conveyor manufacturing experience.
Factory-assembled and pre-lubricated
Selection guidance grounded in years of real-world bearing performance experience
Stock bearings in common sizes ship in 1–3 business days
