The best conveyors for aggregates are pulley-driven or roller chain conveyors with belts and containment features matched to sand, gravel, crushed stone, or other aggregates.
High-torque, no-slip steel-pan or rubber combo belt conveyors built for the most abrasive, high-impact aggregate.

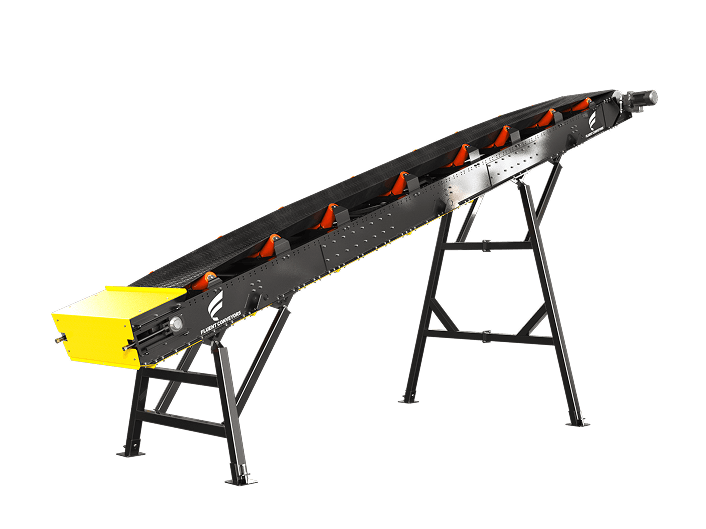

Troughed-belt workhorses that contain loose materials on flat or inclined runs.

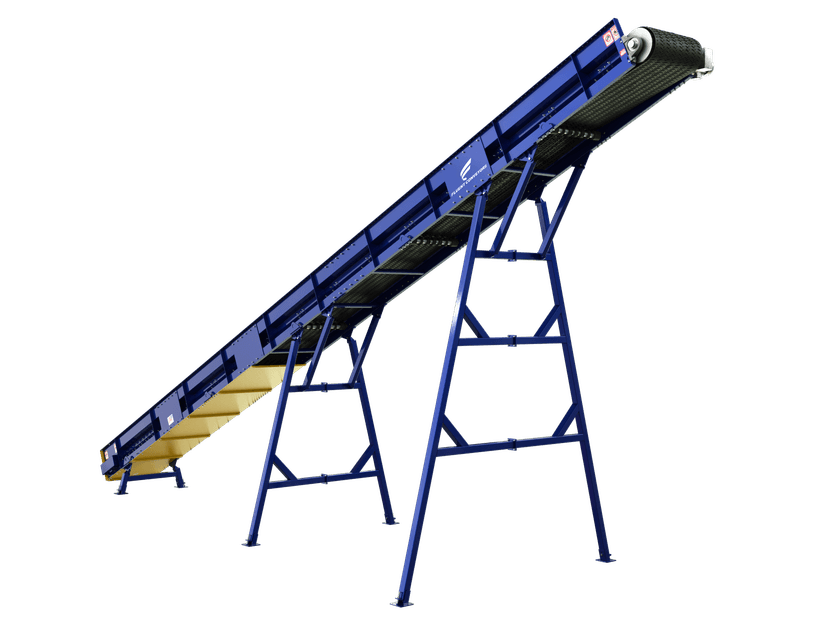

Flat carrying surface material that doesn’t need containment or protection.
Pivoting conveyors that lay material in an arc to build large stockpiles from one feed point. Troughed or flat.
Solid-bed support for lighter or precisely-placed material. Only common for short transitions.

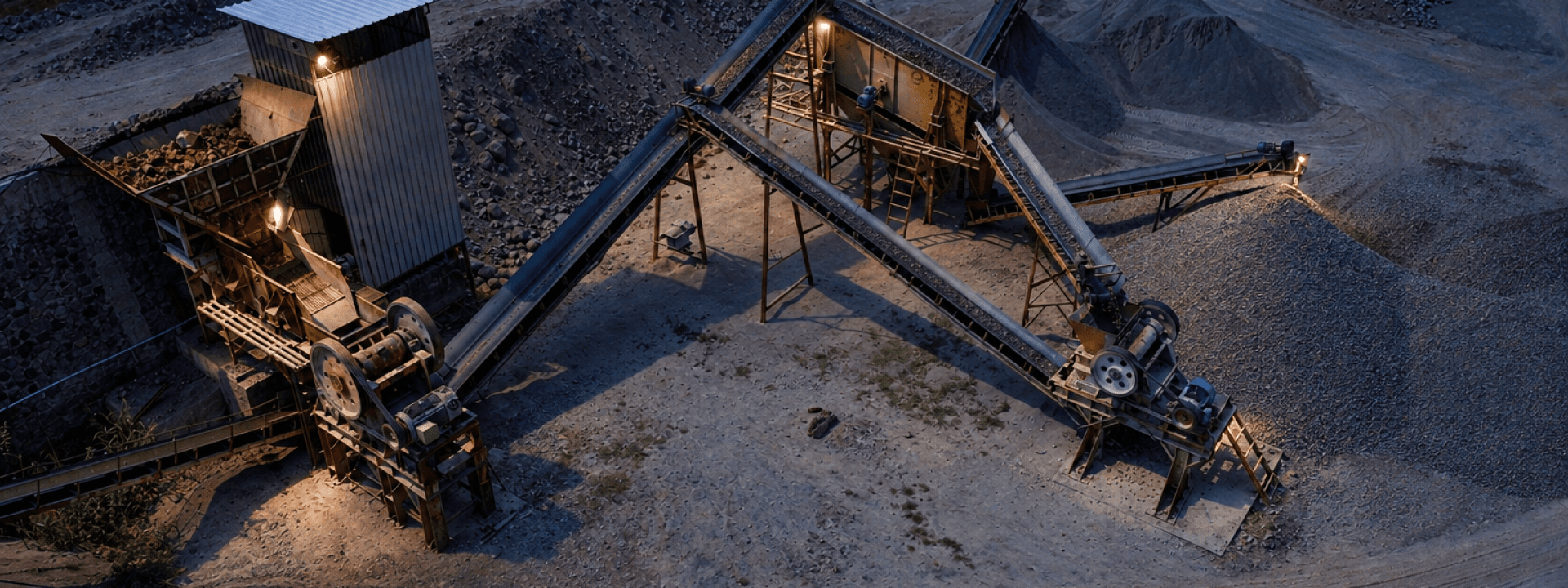

Aggregates operations usually include a system of conveyors and equipment. You’ll choose conveyors based on where they sit in your process, not the material you’re processing. A roller chain conveyor under a crusher and a trough idler running a long overland haul might both move stone, but they do different jobs, and the job determines the conveyor type.
Position in the flow determines four things:
Required throughput
Transportation distance
Containment requirements against spillage and wind
Impact and abrasion resilience
We’ll map conveyor types to their place in a typical aggregates process. We’ll also discuss belt considerations, containment, and cleaning choices that keep aggregates conveyors working efficiently in wet, dusty, and abrasive conditions.
Aggregate moves through pit feed, primary transport, crushing and screening, transfer points, staging, and load-out. Each stage can be optimized through purpose-built conveyors.
This is where raw material enters the system, often dropped by a loader or pulled from a hopper, then carried across distance toward processing. Loose sand, gravel, and run-of-pit stone move best on a trough idler conveyor. The troughed belt carries high volumes with speed and the side curl contains fines that would otherwise blow off an exposed run. For long, open hauls where containment matters less, a flat idler conveyor is a simpler option, though most pit material favors the trough.

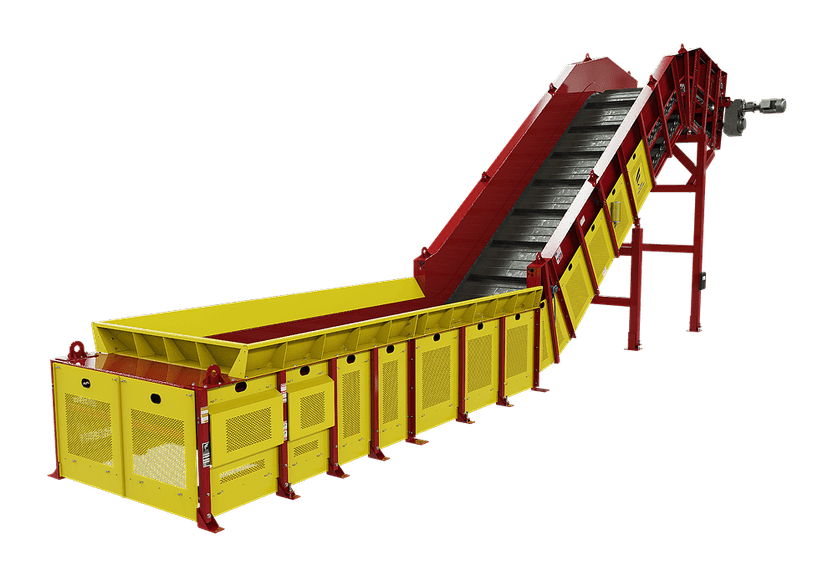

The feed point under a crusher or screen takes the worst impact on site, with heavy, sharp material dropping from height. A roller chain conveyor can effectively handle this process. A steel-pan belt and high-torque, no-slip drive absorb impact and abrasion that would gouge a rubber belt, and they pull through surge loads without slipping.
Material rarely travels in one straight line. Where it changes direction or has to gain height, an incline conveyor lifts it between stages, and the incline angle has to balance footprint against the material's tendency to roll back. Steeper angles save floor space but need cleated or troughed containment to hold loose aggregate on the climb.

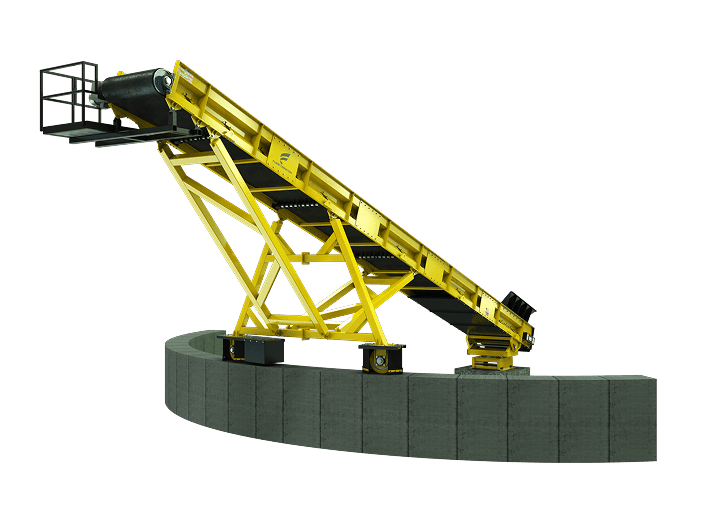

To build storage from a single feed point, a radial stacker pivots around a fixed point to lay material in an arc, creating a far larger pile than a stationary discharge. Fluent configures radial stackers on roller chain, trough idler, flat idler, and slider bed bases, so the stacker matches the material and operation size.

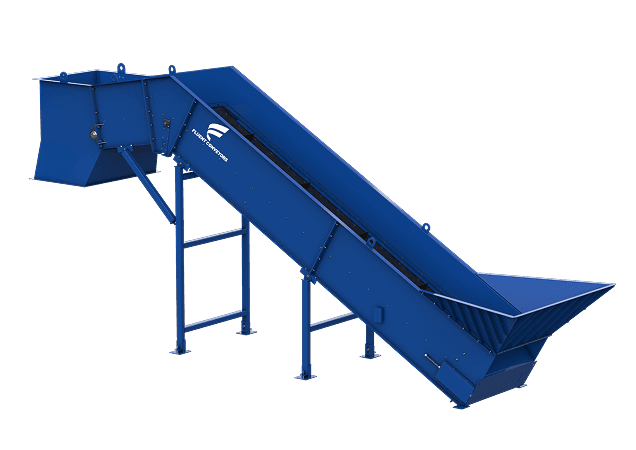

For short, controlled moves, such as feeding a bin or transferring small volumes between processes, a slider bed conveyor gives a smooth, supported belt surface without the cost of troughing idlers. It suits lower throughput and precise placement rather than high-volume haul.
The same equipment serves mining operations and concrete production, where abrasion, throughput, and dust drive the same decisions.

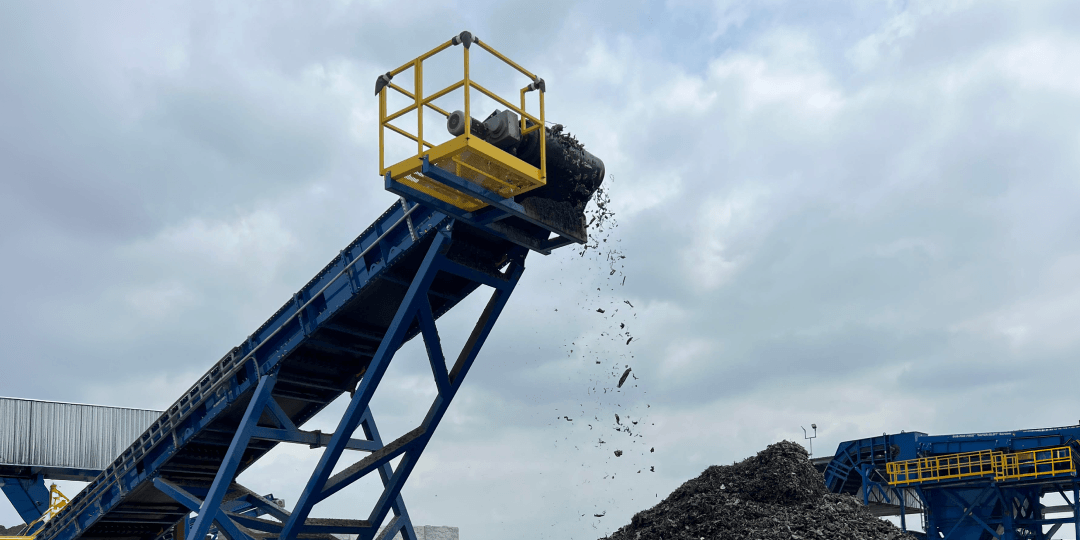

Aggregate is wet, dusty, and abrasive, so the belt, containment, and cleaning choices impact performance as much as the conveyor type. These are the considerations worth settling before anyone quotes a system.

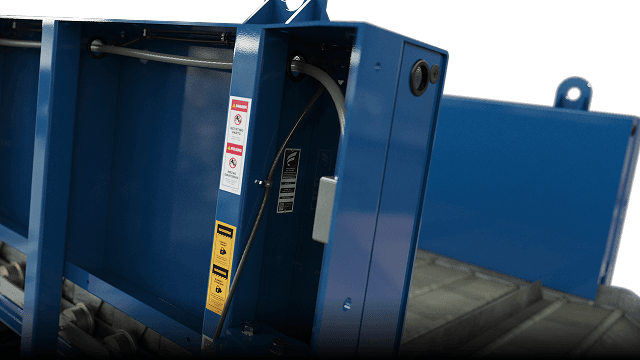

Aggregate conveyors carry the same hazards as any heavy bulk system: moving belts, pinch points at pulleys, and exposed drives. Guarding, emergency stops, and pull cords are standard requirements, and lockout/tagout access has to be designed in for cleaning and maintenance. Building service access into the layout from the start keeps inspection and belt work fast and safe; see how to reduce conveyor hazards for more details.
Fluent designs and builds custom conveyors for abrasive, high-volume bulk material. If you are specing a conveyor for your aggregates operation, contact us to talk through your project, or send the material type, target capacity, and run dimensions, and our engineering team will scope a system to meet your requirements.
