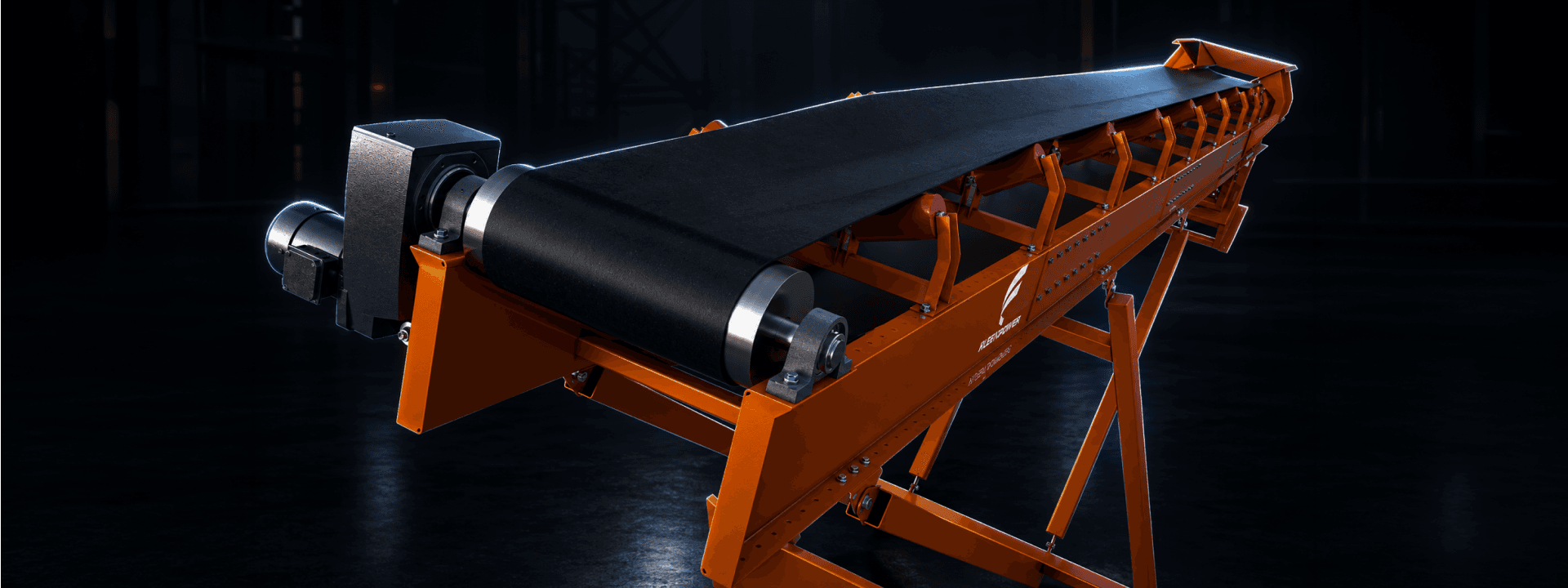

To select the correct conveyor belt size, match a replacement conveyor belt to your conveyor's hardware, or size a new belt for your conveyor, material, and required throughput. Width is only one sizing factor to understand when buying a new belt. This guide covers the dimensions and ratings that matter, including the additional measurements required for roller chain belts.
These situations use different starting points.
If you're replacing a belt to correct spillage or a capacity shortfall, review both paths. The new belt may need to differ from the old one, but the conveyor's frame, pulleys, and idlers determine how much the dimensions or construction can change.
Conveyor belt size includes all the dimensions and ratings required to fit and operate correctly on the conveyor. A belt can match the old width and length and still fail to trough, track, splice, or engage the sprockets.
These steps apply to pulley-driven conveyors, including slider bed, flat idler, trough idler, and trough slider bed conveyors. Lock out and tag out the conveyor before taking measurements. Roller chain belts require a different process, covered below.
Use the most reliable source available, in this order:
OEM documentation or order records: The best source. For a Fluent conveyor, find your serial number, and we'll pull the original build.
Markings on the old belt: Many belts show the manufacturer, ply count, or tension rating on the cover or edge.
Measurements from the old belt: Reliable for width, but length requires the take-up check below in Step 3.
Measurements from the conveyor: Useful for calculating length on simple two-pulley conveyors.
If you're working from options 3 or 4, compare your measurements with any belt markings or records you can find.
Measure straight across the belt at several points along its length. Worn or frayed edges can produce a narrow reading, so use the widest clean measurement and compare it with the frame and pulley face.
Order the width the conveyor was built to accept, even if it does not appear on a standard size list. A belt that's too narrow can spill material over the edges. A belt that's too wide can rub the frame or skirting and mistrack.
Belts with attachments require additional measurements:
Cleated belts: cleat length, height, and spacing, plus the free edge on each side.
Corrugated sidewall belts: base belt width, sidewall height, clear width between sidewalls, and free edge.
With the belt off the conveyor, lay it flat and measure along one edge. With the belt installed, mark a starting point and measure as you jog it through a complete loop, locking out the conveyor between moves. Our guide on how to measure conveyor belt length covers both methods.
For a simple two-pulley conveyor, you can calculate belt length instead:
L = 2C + π(D + d) ÷ 2 + (D − d)² ÷ 4C
Where:
L: belt length.
C: center-to-center distance between the pulleys.
D: larger pulley diameter.
d: smaller pulley diameter.
For example, two 12-inch pulleys on 240-inch centers require about 2(240) + π(12) = 517.7 inches, or roughly 43 feet 2 inches.
Snub, bend, and gravity take-up pulleys add length that this formula does not account for. The same is true of the bend points on an inclined slider bed with a nose-over. Measure these conveyors directly or send us the blueprint.
Check the take-up before relying on a length measurement. Belts stretch in service, and the take-up absorbs that growth. If the take-up is at the end of its travel, both the old belt and the current center distance can overstate the required replacement length.
Size the new belt so the take-up begins near the start of its travel, leaving room for future stretch and tensioning.
Include the splice type with the belt length. A vulcanized endless splice is manufactured to a fixed length, so an incorrect measurement cannot be trimmed on site. An open-ended belt joined with a mechanical splice can be cut to fit during installation.
Record the ply count, top and bottom cover gauge, carcass fabric, PIW rating, and cover configuration. Then record the head and tail pulley diameters.
Belt construction and pulley size are linked. Adding plies or thickness makes a belt stiffer, which can increase the minimum pulley diameter and reduce its ability to trough on the idlers. In U.S. Department of Energy transfer-chute testing, engineers swapped a 1/4-inch belt for a 1/16-inch 2-ply belt because the thicker belt would not trough. If you plan to change the belt construction, check the minimum pulley diameter first.
Three additional details affect which belt can be ordered in your required size:
Splice: endless, finger, or a mechanical splice kit, such as alligator, bolt hinged, or rivet.
Bottom-cover interface: bed material, such as steel or UHMW, on slider beds, or the idler type on idler conveyors.
Operating conditions: heat, oil, or chemical exposure that may require an industrial belt compound, plus any food-contact requirements.
If you're also selecting the belt type or cover compound, see how to choose the correct conveyor belt.
On a roller chain conveyor, the belt is a matched assembly of pans or rubber belting, chain, rollers, side bars, and wings that runs on the sprockets and rails.
Chain pitch is the center-to-center distance between adjacent chain pins. The belt chain and roller chain sprockets must have the same pitch, or the sprocket teeth will not seat correctly.
To measure pitch, measure from the center of one pin to the center of another pin several pitches away, then divide by the number of pitches. Measuring across several pitches reduces the effect of small measurement errors. If the result is slightly above a nominal size, the chain may have elongated from wear, so order by the nominal pitch. Our sprocket dimension guide shows where to measure the teeth.
Roller chain belts have two important width measurements:
Inside the sealing wings: the usable carrying width.
Overall width: the full belt width, which must clear the frame and rails.
Also record the sealing wing height and thickness because the wings affect material containment and clearance.
The rollers ride on rails, so record the roller diameter, flange diameter on flanged rollers, roller width, overall roller width, and roller spacing. These dimensions must match the conveyor track.
Side bar width, side bar thickness, and single- or double-row construction determine the chain's pull rating. Match them to the chain pull the conveyor was designed to use.
Record pan thickness, cleat height, cleat thickness, cleat length, cleat offset from the wing, underside support type and spacing, and wear pad size and spacing. These dimensions affect load capacity and how the belt rides on the return side.
If only part of the belt is worn, you can order pans, wings, rollers, and other roller chain belt replacement parts individually.
Our roller chain belts are available in 4-, 6-, 9-, and 12-inch pitches. Each belt family has its own width range and dimension guide.
Rubber combination belts wider than 84 inches require a longitudinal splice to join belting side by side, which adds cost and complexity.
When the replacement arrives, follow our guide on how to replace a roller chain conveyor belt.
Each conveyor design adds its own fit requirements. On roller chain conveyors, the duty class also limits the belt families and pitches that can be used.
For a new conveyor, we calculate belt width from material, capacity, speed, and trough geometry, then check it against the conveyor layout to design the conveyor around your operational requirements.
A belt carries volume, so tons per hour becomes useful for sizing when bulk density is known. Size for the peak or surge rate instead of the daily average. Average throughput can hide short-term surges that cause mixed solid waste and other light, bulky materials to spill.
Maximum piece size can set the minimum belt width regardless of total tonnage. A U.S. Bureau of Mines design study found that maximum lump size can call for a wider belt than other sizing factors would suggest.
Piece size also affects transfer-point dimensions. The Bureau's dust control handbook calls for chute depth of at least three times the largest lump to reduce jams, so size your conveyor chutes around the largest pieces as well.
A narrow, fast belt and a wider, slower belt can carry the same load, but higher speed can increase dust, wear, and breakage of fragile material. Faster belts also require longer conveyor skirting at the load zone.
NIOSH reports CEMA guidance of 2 feet of skirtboard per 100 fpm, with a 3-foot minimum and up to 3 feet per 100 fpm in heavy dust. That equals 8 feet of skirtboard at 400 fpm and 4 feet at 200 fpm.
To check the speed of an existing conveyor, multiply π by the drive pulley diameter in inches, divide by 12, and multiply by pulley RPM. Our guide on how to calculate conveyor belt speed covers the calculation in more detail.
Trough angle changes how much material a belt of a given width can hold. In EPA tables, a 36-inch belt at 100 fpm carries about 5.1 tons per hour of glass bottles flat, 28.3 at a 20-degree trough, and 41.7 at 35 degrees.
Deeper troughing idlers require a belt flexible enough to form the trough. See Step 4 above for the relationship between belt construction and troughability.
Material also cannot be loaded to the belt edge. The EPA tables reserve an edge distance of 0.055 × belt width + 0.9 inches, which is about 2.9 inches per side on a 36-inch belt.
Steep inclines reduce capacity further and often require cleats and sidewalls.
Operate a bulk belt below its theoretical cross-sectional capacity. CEMA's Belt Conveyors for Bulk Materials uses a design factor of 1.18, or about 85% of standard capacity, to accommodate surges and reduce spillage, dust, and chute plugging. For dusty or degradable material, it uses 1.25, or about 80%.
For example, 2,400 tons per hour of material at 90 lb/ft³ on a 600 fpm belt with a 35-degree trough and 20-degree surcharge angle requires 1.48 ft² of loaded cross section. Multiplying by 1.18 gives a minimum of 1.75 ft². A 48-inch belt provides 1.804 ft², making it the narrowest standard width that meets the requirement.
On manual sort lines, worker reach can limit belt width before carrying capacity does. The EPA recommends maximum sorting belt widths of 42 inches for paper and 30 inches for commingled containers when workers sort from one side, and 72 and 48 inches when workers sort from both sides.
Use these limits as a starting point when laying out a recycling sort station.
If you're ready to specify a new line, browse our conveyors or send us your material, throughput, and layout.
Use this worksheet to collect the dimensions and specifications needed for a replacement belt. Fill in what you can, and include photos of the belt edge, splice, take-up, and any belt markings to fill in missing information.
Owner's manuals and dimension guides for our conveyors are available in our conveyor specs library.
If you're unsure about a measurement, send us what you have, and we'll work with you to fill in the gaps.
Send us your measurements, and a belt specialist will flag anything that will not fit and quote a belt to match, whether the conveyor is ours or another manufacturer's.
