Rubber Combo Roller Chain Replacement Conveyor Belts

Durable 220 or 330 ply rubber belting built with heavy duty reinforced frame for great impact resistance. This belt type is best used for shredded materials, fines, cardboard, plastics and mo

Download Brochure
Lead Time
4- 6 Weeks (Depending On Specifications)

Rubber Combo Roller Chain Conveyor Belt Overview

Fluent Conveyors Rubber Combination Belts are widely used in the waste and recycling industry. The combination belting has a heavy duty frame and is a good alternative to steel belting. Fluent Rubber Combination conveyor belts are as heavy-duty as they come. These C-channel reinforced belts are the perfect mid-weight applications for processing cardboard, paper, old newspaper, plastics, shredded paper, and more.

Rubber combo belts come in 6-inch, and 9-inch pitch options up to 84” wide (optional larger with longitudinal splice). 2 Ply 220# and 3 Ply 330# belting, precision die punched wings, single flanged and sintered steel rollers, solid locking pins C-channel backing and add-on options such as cleats, upgraded chain, larger rollers and more.

The rubber combination belt consist of two chains with steel c-channel spreading between them. The c-channel are located on every other chain pitch and the rubber belt is laid over the backing bars and bolted down. Optional cleats can be added to the rubber combo belt. These cleats will be sized (2”, 3”, 4” and custom cleats) and located as dictated by the project specifications. These belts are manufactured in sections approximately 13 feet long to simplify repairs and installation.

Engineering & Manufacturing Specifications

Engineering Specs

Fluent Conveyors rubber combo belts are engineered with industry leading 3D CAD.  The manufacturing team has over 50 years of combined experience on conveyor belts and understand the most complex applications to ensure the correct belt is always used. All replacement belts are engineered closely with the production team to ensure the processes from engineering to manufacturing meets tight tolerances, QA validation and project deadlines.

Manufacturing Specs

Fluent Conveyors belts have been tested, validated and approved to meet the quality tolerances our engineering team requires. The production team has over 50 years of combined experience paired with a new technology, validated core processes and a great quality assurance process that ensures all belt specs meet approval drawings and application requirements.

Preventative Maintenance

The Fluent Conveyors rubber combo conveyor belts only require standard maintenance to guarantee a trouble free operation. These belts come pre-tensioned and run for over two days prior to shipment to ensure they fit correctly and run smoothly.

Core adjustments and maintenance:

  • Visual inspection (belt, damage, rubber damage). This inspection is important to ensure that all of the components on your conveyor will continue to function as designed.  Further protecting the other components and increasing the overall life of your machine.
  • General removal of debris (chainways are clear and rollers/chain bars are free of debris).  Keeping your conveyor clean is imperative to remove the risk of jams or potential failure.
  • Auto Chain Oilers are full and functioning.  Keeping your chain properly oiled is imperative to the function and longevity of your conveyor.  A properly oiled chain significantly reduces running friction (saving you energy) and can last more than twice as long as an under oiled chain.
  • Maintaining proper chain tension.  This should be done through periodic visual checks to ensure the chain is not loos enough to slip over teeth on the drive sprockets, but also not so tight as to add friction and resistance to the system.
  • For the first 90 days after install and start up do a daily check to make sure the belt tension is correct and the chain is wrapping nicely around the sprockets.

**If you have additional questions or need help with anything on your conveyor, please visit our help section below or give our engineering team a call.

Our Rubber Combination Chain Belt Process of Perfection

Collaborate

At Fluent Conveyors, we look for partners over clients. Your success is our success. Every step along the way, through dynamic collaboration, we ensure high-end experience from pre-sales engineering to install.The process starts with a detailed system design meeting in which fluent sales and engineering staff complete a pre-project kick off call with our customer to gather all necessary info and gain a detailed understanding of their specific needs. The Engineering team designs a unique solution while working with each customer to ensure accuracy and detailed approval drawings. Ensuring your vision comes to life.

Create

Our open creative process ensures you’re always in the driver’s seat. We blend technical expertise with visionary thinking to ensure your expectations are not only met, but surpassed. Fluent Conveyors uses leading edge 3D CAD and automation tools to ensure a process that puts the customer first, provides a speedy turnaround time, error free engagement and a better overall customer experience. End result: engineered product for your specific application type and unique needs delivered in hours – not days or weeks.

Convey

Our processes ensure 100’s of customers across the World precise, efficient, and smooth operations. Each conveyor is tested, validated and approved to verify structural and mechanical operability. It’s just that simple.

Rubber Combination Roller Chain Key Features
C-Channel Reinforcement

C 3” x 5# up C 6” x 8.2# heavy duty channel every other pitch

Interlocking Side Wings

2- ½”. 3” & 4” high precision die formed interlocking off set wing 1/8” - 1/4” thick wing fully mig welded to the chain bar to prevent scrap build up.

Cotter Pins

Easy maintainance of chain and to secure the rods to the rollers. Solid locking pins available

Double Row Side Bars

Standard 2” x ¼” thick C1045 precision die-punched sidebar. Additions include 2” x 3/8” thick and 2.5” x ½” thick. 1.125” wide x 3/16” thick on the smaller pitches

Customs Angle Cleats

¼” or 3/8” thick angle cleats in 2”, 3” or 4” high options

Solid Machined Bushings

.50 - 1.0 ID x .69-1.38 OD Long 1018 solid, machined bushing. Carburized, hardened RC55-60, press fit into inner side bars.

Heavy Duty 2-Ply 220 or 3-Ply 330 Rubber

Fluent Conveyors 2 ply 220 up to 3 ply 330. Custom options available upon request. Max width without longitudinal splice is 84” wide.

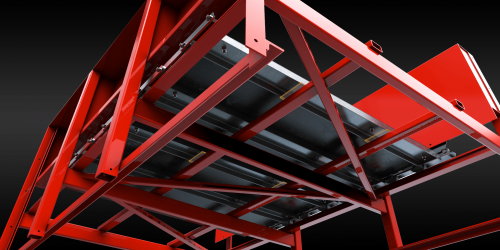

Heavy Duty Impact Pads

Custom number of rows, ¼”, 3/8”, ½” and 1” thick plate impact shoes every other pitch

Hardened Sintered Steel Rollers

Flanged and hardened steel rollers in 1 ¾”, 2-1/16”, 3”, 3 ½”, 4” and 5” diameter options.

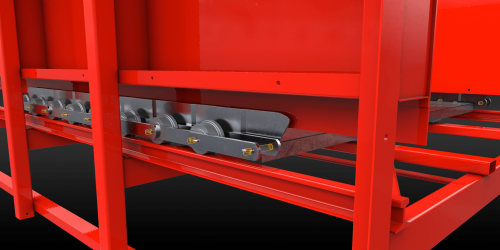

Headed Stub Pins

4142 precision headed machined and heat-treated alloy pin. See options pages for all options. ¾” diameter up to 1” diameter pins to connect chain.

Detailed & Customized Mechanical Engineering

FLUENT CONVEYOR DESIGN GUIDELINES

Fluent Conveyors Rubber Combination Roller Chain conveyor belts are designed with cutting edge software to be ahead of the curve. Giving you an edge above the rest. Fluent Conveyors uses premium 3D CAD software and has our belts manufactured to industry leading tolerances and standards to guarantee premium quality roller chain conveyor belts. After completion of a design, the engineering team releases to quality assurance, allowing secondary engineers to validate critical dimensions, calculations and manufacturability. After initial and secondary engineering approvals, belts are released to the manufacturing facility by the lead manufacturing engineer. Our experts only approve the highest caliber work to ensure you’re working with nothing but the best.

FLUENT ROLLER CHAIN BELT MANUFACTURING GUIDELINES

Fluent Conveyors Roller Chain Conveyor Belts are built in innovative facilities to equip you with the best product possible. With all the industry leading equipment and processes, Fluent Conveyors production team has over 100 years of combined experience paired with a facility of more than 85,000 square feet. The core facility has a paint booth, 40,000 square feet of dedicated assembly, 6 – welding stations, CNC fabrication equipment, 10 – overhead cranes and more. Parts are cut/machined on CNC Routed machines and bent on CNC Brakes for the best in industry tolerances. Every weld is tacked and re-measured for accuracy then completed by the staff of certified welders. Ensuring you’re working with smart, flawless machinery.

CONVEYOR TESTING OVERVIEW

All conveyor belts are delivered to you ready for hard work. Assembled and released to a detailed quality assurance checklist to make sure your machinery can hit the ground running. This includes key validations such as; weld examination, sub-assembly QC, visual inspection and dimension verification. Making sure your new conveyor belt is set up for long term success.

SHIPPING OVERVIEW

We ship the smartest way possible, to make your job easy. Fluent Conveyors Product shipments are carefully planned in CAD software to be loaded in an organized, space saving, and safe manner ensuring that all products arrive on-site the same as when they left our facility. Loose items are boxed and marked, assembled parts and components tightened to endure the rigors of freight and shipping. We’re here to make sure every step of the process is seamless.

Rubber Combo Roller Chain Belt Specifications & Options
Width Options
  • 12”
  • 24”
  • 36”
  • 48”
  • 60”
  • 72”
  • 84”
  • 108” (with longitudinal splice) and custom widths from 12” up to 120” width with all increments within that range. We can go up to 120” width with a longitudinal splice, otherwise 84” wide is max
    Cleat Options
    • 1.5”
    • 2”
    • 3”
    • 4”
    •  ¼” – 3/8” thick angle. • Custom options available per required specifications.
    Pitch Options
    • 4 inch
    • 6 Inch
    • 9 Inch.
    Rubber Thickness
    • 2 Ply 220
    • 3 Ply 330
    Side Wing Height
    • 2-1/2”
    • 3”
    • 4”
    Chain Pull
    • 4,000#
    • 6,000#
    •  9,000#
    • 13,000#
    • 25,000#
    Side Bar Thickness
    • 3/16”
    • 1/4”
    • 3/8”
    • 1/2”
    Hardened Bushing Sizes
    • .50 inside diameter x .69 outside diameter
    • 1.0 inside diameter x 1.38 outside diameter
    Pin Diameter Options
    • 1/2”
    • ¾"
    • 1”
    Roller Diameter Options
    • 1 ¾”
    • 2 1/16”
    • 3
    • 3 ½”
    • 4”
    • 5”
    Custom Modifications
    • No wings
    • Longitudinal splice
    • Optional 4 ply 440 thickness
    • Drag chain belts (Karl Schmidt Replacement Belts)
    Additional Replacement Roller Chain Belts & Parts!

    As well as producing bespoke conveyor systems, we also supply custom replacement belts and parts to ensure no client sees their assembly line stay offline for an extended period of time. From replacement motors to sprockets, everything is covered if a client comes across a failing element of their conveyor system.

    Sadly, it’s inevitable your clients will face some type of issue with their conveyor system at some point. Even with Fluent Conveyors’ best equipment in place, conveyors are going to suffer from wear and tear due to their demanding nature. However, being able to offer a solution at any time will be appreciated by your clients.

    Explore How We Can Help You Replace Your Rubber Combo Roller Chain Conveyor Belt

    Are You Looking For A Easy & Seamless Way To Order Rubber Combo Roller Chain Belting?

    Our Process Is Typically Very Lean & Detailed! We Prefer Not To Waste Our Customers Time!
    Please Contact Us If You Want Us To Help & You Are Comfortable With The Following:
      1. Price Can Range For Each Belt From $20,000 - $100,000+
      2. Lead Time of 5 Weeks – 8 Weeks + (Depending on belt specs, rubber thickness, chain etc)
      3. You have visited our resource center and have all the required dimensions
      4. Have the ability to review & sign approval drawings
      5. 50% down, 40% 2 weeks prior to shipment, 10% net 30 post install
      Frequently Asked Questions
      • How are rubber combination conveyor belts made?

        Fluent Conveyors rubber combination conveyor belts are made from a skeleton structure with a 3 PLY rubber belt bolted over the top. The structure is made by welding C channel to the chain every other pitch on both sides. This creates a rigid structure for the rubber belt to ride on and transfers the load to the carrying rails effectively. Please contact the Fluent sales team if you have any further questions.

      • How are rubber combination conveyor belts made?

        Fluent Conveyors rubber combination conveyor belts are made from a skeleton structure with a 3 PLY rubber belt bolted over the top. The structure is made by welding C channel to the chain every other pitch on both sides. This creates a rigid structure for the rubber belt to ride on and transfers the load to the carrying rails effectively. Please contact the Fluent sales team if you have any further questions.

      • What is a rubber combo conveyor belt?
        A rubber combination conveyor belt is a belt that is made from both roller chain and rubber belting. This belt is ideal for highly abrasive environments as well as small particles. The rubber belt manages the particles and keeps them from wearing between any moving steel pieces. The rubber belt is then supported by a steel structure run between the chains allowing for high loads and good impact resistance.
      • How long will it take to deliver a replacement rubber combination conveyor belt?

        Fluent Conveyors rubber combination conveyor belts normally take 4-6 weeks plus shipping. Please contact our sales team and we can get started with you immediately.

      • How are rubber combination conveyor belts made?

        Fluent Conveyors rubber combination conveyor belts are made from a skeleton structure with a 3 PLY rubber belt bolted over the top. The structure is made by welding C channel to the chain every other pitch on both sides. This creates a rigid structure for the rubber belt to ride on and transfers the load to the carrying rails effectively. Please contact the Fluent sales team if you have any further questions.

      • What is a rubber combo conveyor belt?
        A rubber combination conveyor belt is a belt that is made from both roller chain and rubber belting. This belt is ideal for highly abrasive environments as well as small particles. The rubber belt manages the particles and keeps them from wearing between any moving steel pieces. The rubber belt is then supported by a steel structure run between the chains allowing for high loads and good impact resistance.
      • How long will it take to deliver a replacement rubber combination conveyor belt?

        Fluent Conveyors rubber combination conveyor belts normally take 4-6 weeks plus shipping. Please contact our sales team and we can get started with you immediately.

      • What materials are best used on rubber conveyor belts?

        Rubber conveyor belts are best suited for fines, paper fibers, shredded paper, shredded OCC, ONP and other fibrous materials that will be transferred in heavy loads.
