Troughed-profile belts for light-duty bulk conveyance over a smooth steel bed. Configure by width, ply, compound, cover, cleat, and splice for Fluent conveyors or any general retrofit installation.
Note that not all belts can be configured with each option.
36, 48, 60, 72, 84 inches; larger custom widths require longitudinal splicing
Polyester and nylon
Rubber, neoprene, nitrile (FDA/USDA), SBR, butyl, PVC, polyurethane
Smooth, white FDA, blue FDA, green FDA, black, rough top, crescent top, chevron top, cleated top, UV resistance
120, 150, 200, 250, 350, 450, 600, 750 PIW
2–4 inches; 1/4–3/8-inch thick angles; flat bar cleats also available
Bighorn, fablift, longhorn, FabClimb (3-ply 225 3/16 × 1/16-inch) in 3 pattern widths (31, 23 1/2, and 17 1/4-inch)
Black standard, black oil resistant, black high-heat resistant, black flame retardant (FR), black high-oil resistant, white oil-and-fat resistant (FDA)
Endless non-mechanical splices, custom finger splice, longitudinal vulcanized splice, rivet plate and hinged, bolt hinged and plate, alligator hinged and clips, vulcanized, food-grade splices
C-channel backing, no wings, top impact shoes, formed trapezoids, inverted angle for hot materials
Store indoors; best if installed within 1 year
conveyor operation.

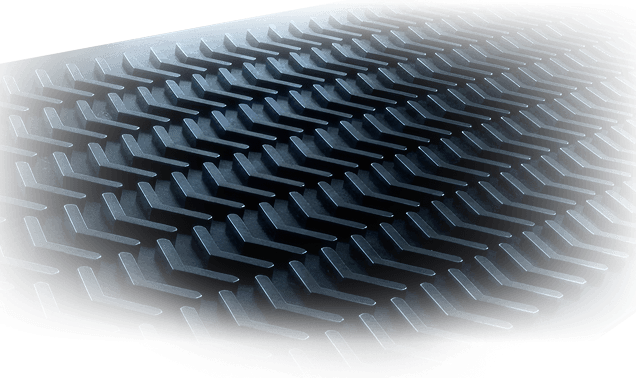

Trough slider bed conveyor belts run over a smooth metal bed shaped into a shallow trough. The bed geometry forms the belt edges into a troughed profile that centers loose bulk materials, contains spillage, and runs quieter than idler-supported alternatives.
Compared with a trough idler belt of the same width, a slider bed belt handles lighter duty cycles, shorter center distances, and precision-movement applications where belt tracking matters more than throughput.

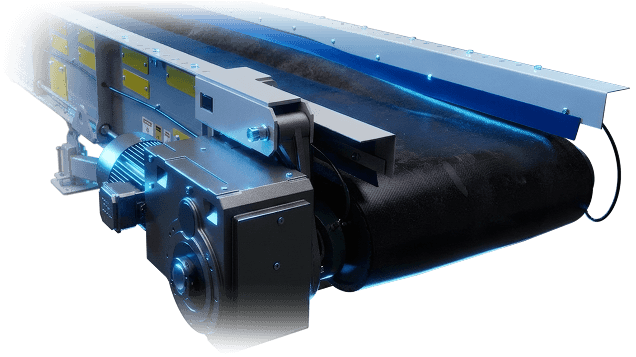

Trough slider bed belts are built from rubber, PVC, or specialty compounds over a polyester or nylon carcass. Because the belt slides against steel rather than rolling over idlers, cover compound selection matters more for friction and heat dissipation than on an idler belt. FDA-compliant nitrile and white PU covers handle food and sanitary applications. Heat-resistant compounds extend service life in hot-material applications where bed friction adds thermal load.
Review industrial belts for the full range of compound-based options.

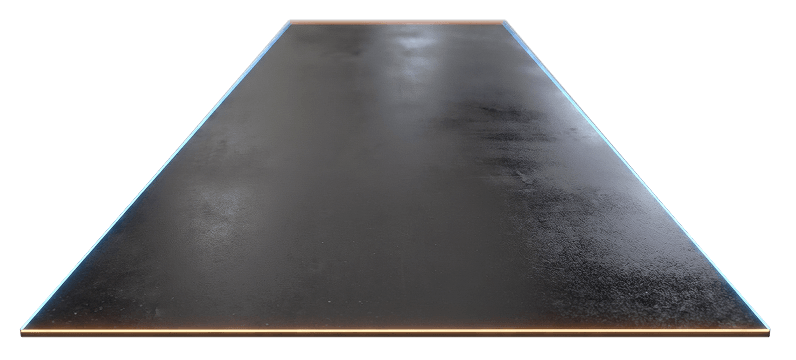

Trough slider bed conveyors handle loose, granular, and light-to-moderate bulk materials where precision tracking, quiet operation, and cost efficiency matter more than high-throughput performance. They are common on short transfers, infeeds, and sorting lines rather than long-distance runs.
Popular applications
When replacing a belt, match the existing spec from the manufacturer documentation. For a new specification or a retrofit where documentation is unavailable, measure the old belt and work through the following criteria:
For more information, see how to choose the correct conveyor belt and how to select the correct conveyor belt size.
When ordering a replacement trough slider bed belt, have these measurements ready. If anything's unclear, contact our engineering team, and we'll help work through it.
Belt width (inside sealing wings)
Belt width (overall)
Belt length
Cleat height (angle iron shown)
Cleat thickness
Total cleat length
Offset from sealing wing
Support type and size
Support spacing
Support length
Sealing wing height
Sealing wing thickness
Sidebar width
Sidebar thickness
Single- or double-row designation
Wear pad thickness
Wear pad quantity
Wear pad spacing
Wear pad location
Wear pad size
Fluent designs and builds custom conveyors for recycling, sorting, light aggregate, and food-handling operations. When you source through us, you're working with engineers who specify and troubleshoot slider bed belts every day.
PVC and heavy-duty rubber compounds: rated for abrasion, oil, flame-retardant, and high-heat service
Widths 36–84 inches: stocked; larger widths available with longitudinal splicing
Cleat, chevron, and smooth-top profiles: matched to your bed geometry and material stream
Vulcanized endless, food-grade, and mechanical splice options: factory or field installation
Lead time: belts ship in 2–5 weeks
